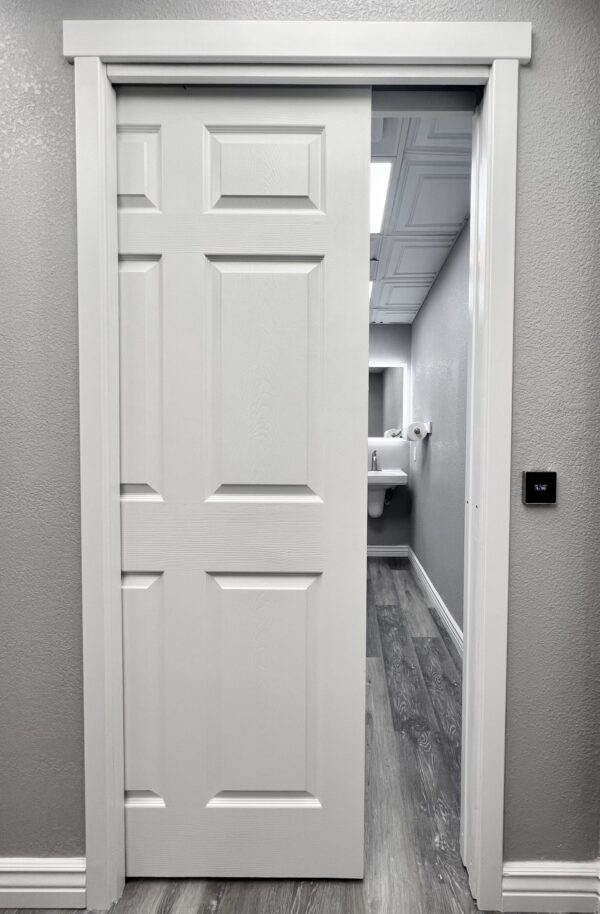

WAAY™ Automatic Pocket Doors

Sale!

WAAY™ Automatic Pocket Door 32″ x 6’8″

Model: NCC-1701-32

Original price was: $2,900.00.Current price is: $1,995.00.
Category:

View Compatible Doors

View Supporting Documents

Description

  • Can Operate with any standard 1-3/8″ door panel up to 65 lbs. (not included)
  • Once installed, the  WAAY™  System can be completely disassembled and reassembled with just a few hex wrenches.
  • Advanced sensors in the Jamb and extremely sensitive object detection make it safe for the whole family
  • Tested to last over 1 Million cycles without maintenance
  • Door is equipped with a safety lock on each panel
  • Comes with two remotes which can open/close and lock/unlock door
  • Ultra quiet, belt-free design.
  • Can be configured to open and close at many different speeds
  • Powered from a standard 110v outlet mounted behind the jamb
  • Meets ADA requirements for opening size and emergency opening force
  • During power loss, our power supply holds enough juice which will allow the door to open and close a few cycles even without power! After that you can slide the door open and closed as if it were any other pocket door. Once the power returns, the door will resume and operate as it did before.

Additional information

Door Panel Size

Size: 32" x 80" x 1-3/8"
Weight: 15 lbs to 65 lbs
Material: Any
Framing Rough Opening Size

Height above finished floor: 83.00" +/- .025"
Width: 74.5"
Wall Thickness: 4"
Stud Size: 2×4
Finished Opening

Width: 31"
Height: 80.5"
Jamb Sensors

Type: Time-Of-Flight,
No reflectors or alignment necessary
Location: Inside Jamb
Diameter: 3/8"
Mount: Screws from back of jamb, pre-drilled from factory
Mounting Hole Size: 3/8"
Motor

Type: Brushless AC Servo
Voltage: 42V
Peak Power: 1.5kW
Rated Power: 240W
Diameter: 3"
Encoder Absolute
Mount Twist-Lock Quick Release
Temperature Range: -40C to 85C
Power Supply

Type: Switch Supply
Input: 100-240V AC, 4.0A 50/60Hz
Output: 42V 5.72A DC
Input Plug: USA, 3-Pin, Right Angle (NEMA 5-15P)
Cord Length: 3ft
Size:
Weight:
Mount Screw Tabs
Temperature Range: Screw Tabs
Regulatory: UL, CE
Enclosure: Steel
Motor Controller

Type: Integrated with Motor
WiFi: Yes, (2.4GHz)
Control Connectors: 4 x RJ-12
Power: 3-Pin Connector for Power Supply
Automatic Updates: Yes
Activation

User Selectable: Yes
Panels: Touch, Touchless
Jamb Sensors: Wave Open, Wave Close, Swipe
Remote: Open, Close, Toggle, Jog
Lock

Type: Electronic (non-latching)
Use for: Privacy, Bathrooms, Bedrooms, etc
Environment

Temperature: -20C to 85C
Humidity: 0% to 90% RH
Location: Indoor Only
Safety

Object Detection: Jamb
Humidity: 0% to 90% RH
Location: Indoor Only
Accessibility

Panels: Stateless controls, tactile buttons, configurable remote
Size: Door opens to full 35" opening
Connectivity: Can be connected to a standard Handicap Button
